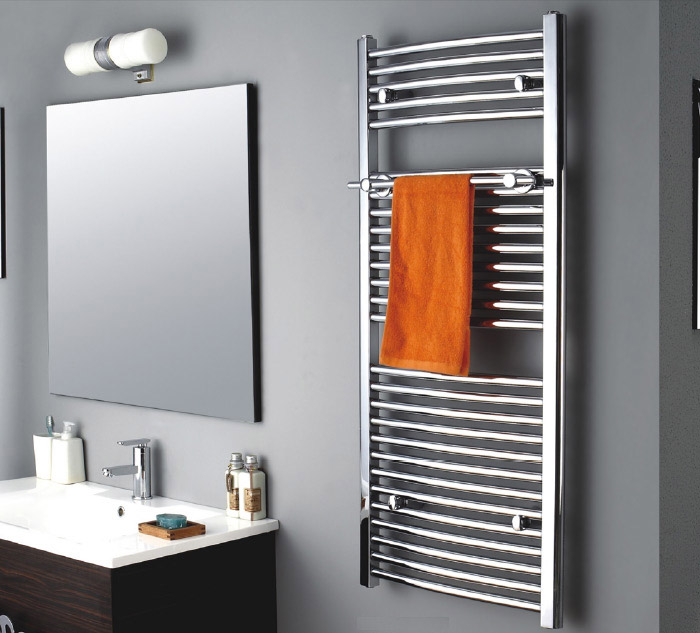

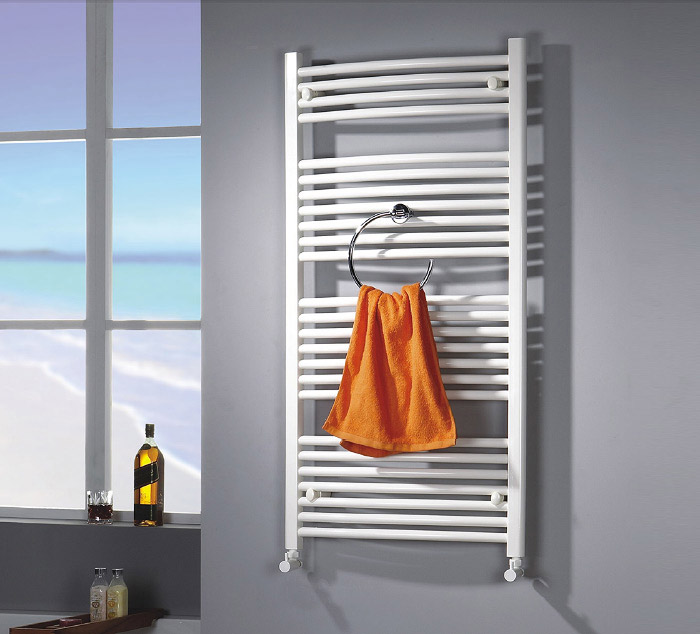

Gebogene Badradiatoren

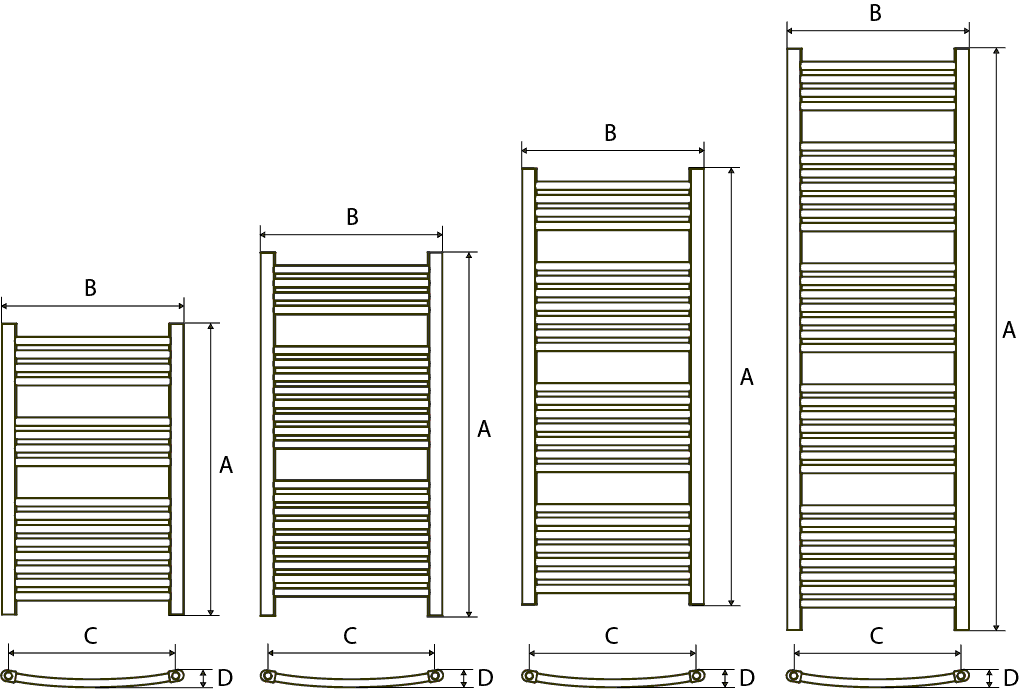

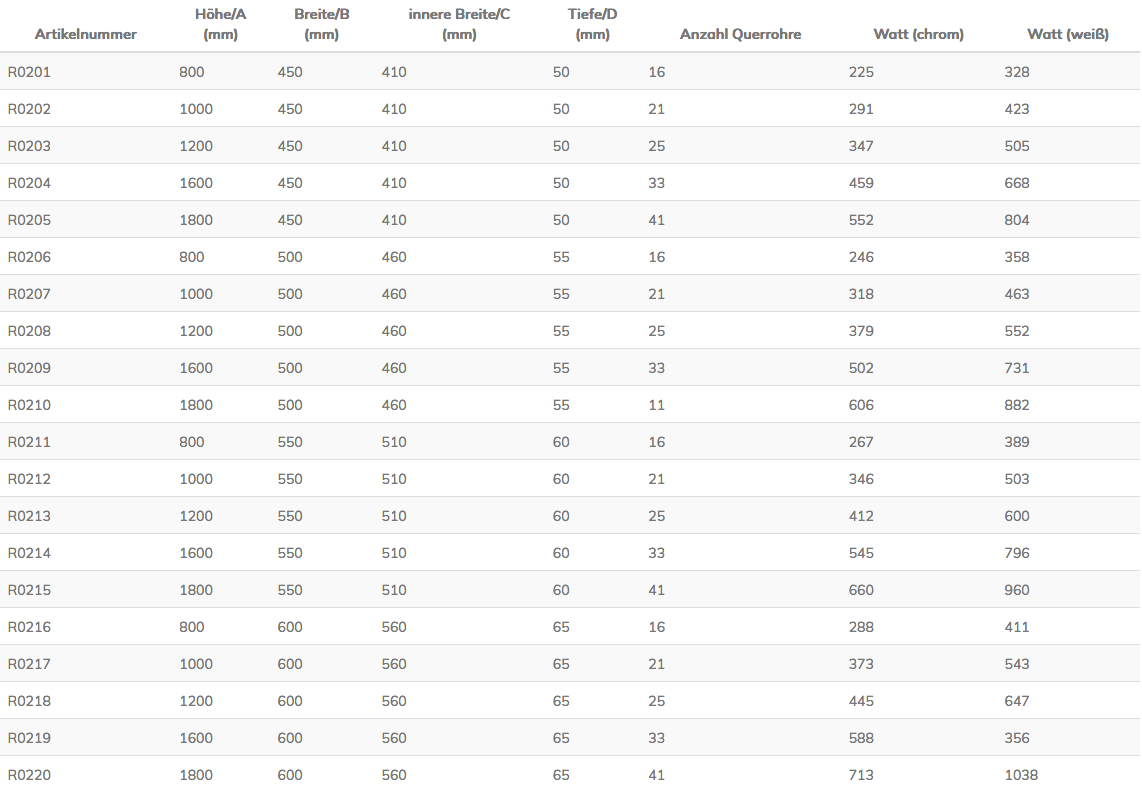

| Artikelnummer |
Höhe/A (mm) |
Breite/B (mm) |
innere Breite/C (mm) |
Tiefe/D (mm) |
Anzahl Querrohre | Watt (chrom) | Watt (weiß) |
|---|---|---|---|---|---|---|---|
| R0201 | 800 | 450 | 410 | 50 | 16 | 225 | 328 |
| R0202 | 1000 | 450 | 410 | 50 | 21 | 291 | 423 |
| R0203 | 1200 | 450 | 410 | 50 | 25 | 347 | 505 |
| R0204 | 1600 | 450 | 410 | 50 | 33 | 459 | 668 |
| R0205 | 1800 | 450 | 410 | 50 | 41 | 552 | 804 |
| R0206 | 800 | 500 | 460 | 55 | 16 | 246 | 358 |
| R0207 | 1000 | 500 | 460 | 55 | 21 | 318 | 463 |
| R0208 | 1200 | 500 | 460 | 55 | 25 | 379 | 552 |
| R0209 | 1600 | 500 | 460 | 55 | 33 | 502 | 731 |
| R0210 | 1800 | 500 | 460 | 55 | 11 | 606 | 882 |
| R0211 | 800 | 550 | 510 | 60 | 16 | 267 | 389 |
| R0212 | 1000 | 550 | 510 | 60 | 21 | 346 | 503 |
| R0213 | 1200 | 550 | 510 | 60 | 25 | 412 | 600 |
| R0214 | 1600 | 550 | 510 | 60 | 33 | 545 | 796 |
| R0215 | 1800 | 550 | 510 | 60 | 41 | 660 | 960 |
| R0216 | 800 | 600 | 560 | 65 | 16 | 288 | 411 |
| R0217 | 1000 | 600 | 560 | 65 | 21 | 373 | 543 |
| R0218 | 1200 | 600 | 560 | 65 | 25 | 445 | 647 |
| R0219 | 1600 | 600 | 560 | 65 | 33 | 588 | 356 |
| R0220 | 1800 | 600 | 560 | 65 | 41 | 713 | 1038 |
